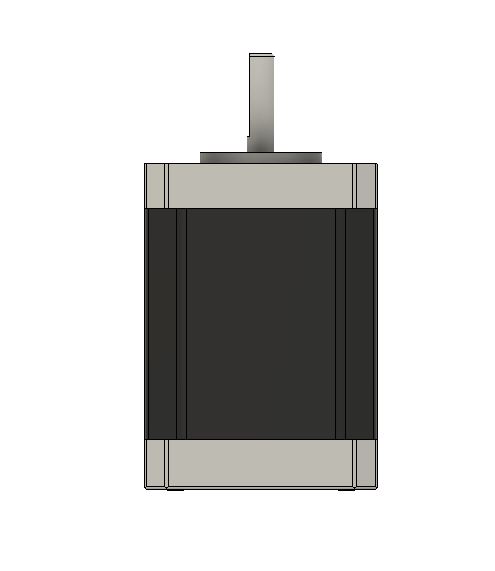

For any stepper motor to be wired up properly, we’ll need to determine which wires are “pairs” or connected to the ends of each coil. These are usually referred to as coil “A” and coil “B”. The exact order of the pairs Black/Green or Green/Black of pins does not matter, but keeping the pairs together on the left, and red/blue with each other on the right is important.
To get the motor moving properly and in the right direction stepper motors must be wired up properly. It does matter which coil is which and what the polarity of the coils. While there is no universal standard for color code for stepper motors, many stepper motor manufactures keep their stepper wires in order with the motor coil pairs
Black/Green is a motor coil
Red/Blue is a motor coil
Although the wiring colors can not be trusted the order of wires is usually as follows:
1A – green
1B – black
2A – blue
2B – red
A + black
A – green
B + red
B – blue
A + black (red)
A – green (green)
B + red (yellow)
B – blue (blue)
Determine which wires are “pairs” or connected to the ends of each coil. The motor wire pairs are known as coil “A” and coil “B”. The exact order of the pairs does not matter. Only keeping the pairs together is important
On the left
red/blue with each other
on the right
black/green with each other
If the color code and motor wiring isn’t allowing motor movement, ignore the wire colors and look at the wire positions instead. Use a multimeter to test to see if continuity in the wiring of the stepper – both motors behaved the same in that there was zero resistance between blue and red , zero resistance green and black.
Here are two ways you can pair the stepper motor wires into phases:
Using a multimeter, check for resistance. There should be a few ohms resistance between two wires that belong to the same phase, and no continuity between wires that belong to different phases.
With the motor wires not connected to anything, spin the motor shaft. Short two of the wires together, then spin the shaft again. If it is much harder to spin than before, those two wires belong to the same phase. Otherwise, try again with a different pair of wires shorted together.
Use a multimeter to find the coils and wire appropriately. ohm test the stepper motors. A wire pair should have a slight resistance. If the resistance values are right. The XYZ motors are rated 4.2V 1.5A 2.8 Ohm +/-10%. The extruder motor is rated 2.6V 1A 2.6 Ohm +/-10%.
Check for resistance. There should be a few ohms resistance between two wires that belong to the same phase, and no continuity between wires that belong to different phases.
With the motor wires NOT connected, spin the motor shaft. Short two of the wires together, then spin the shaft again. If it is much harder to spin than before, those two wires belong to the same phase. Otherwise, try again with a different pair of wires shorted together.
Bipolar motors have two separate coils:
Red/Green is one coil
Blue/Yellow is the other coil.
Use a multimeter to find the coils and wire appropriately. ohm test the stepper motors. A wire pair should have a slight resistance. If the resistance values are right. The XYZ motors are rated 4.2V 1.5A 2.8 Ohm +/-10%. The extruder motor is rated 2.6V 1A 2.6 Ohm +/-10%.
Choosing a corexy printer design can be a challenge with so many design options available. Every CoreXY design has different design goals for different needs as well as different compromises. Whether you’re building a new printer or just in need of a new 3d printer, there are many options to choose from with each of them having their own unique advantages and disadvantages.
Size vs Speed
Cost vs Accuracy
Size vs Volume
Depending on your application there are many options to choose from.
DIY 3D Printer Kits
Design and Build Plans
Plug and Play- Ready to Print
New Projects Soon To Be Released
All Metal Parts
The HeVort changes the way 3d printers level the bed. Although non-planar printing is not really widely implemented yet, we may see more non-planar printing in the future. This would allow you to print a part in vertical mode and add another component at an angle without need of support material or other mechanical aids.
The Y-axis carriage design for the WorkHorse 3D Printer has been updated. This carriage design will fit on the Workhorse V1 and V2 designs. The carriage mounts to MGN12h linear rails which have a 20mm x 20mm hole pattern.
Use this for your Workhorse Printer Setup but with Duet 3 Setup
Connect the Duet to your PC with the USB cable provided. Do not connect other power supplies at this stage.
Windows users, download the USB drivers for Duet here and extract the files to a suitable location.
Install Drivers.
Download YAT Terminal Interface.
Setup YAT to use <LF> as the end of line character. Go to "Terminal" Menu -> "Settings" -> "Text Settings" -> "EOL sequence:" set to <LF>
Windows Users: Open YAT, and configure the correct COM port.
send command M115
The WiFi module has a blue LED on it, just next to the Micro SD card holder. This should flash once when power is connected to the board, but will only be lit permanently when connected to a WiFi network. Duets with an external antenna use a different WiFi module with no LED; if you have one of these, don't forget to plug in the external antenna!
Send M552 to check the status. It should say "WiFi module is disabled". Now put it into idle mode by sending command M552 S0. Send M552 again to check it's idle, then proceed to the next step.
